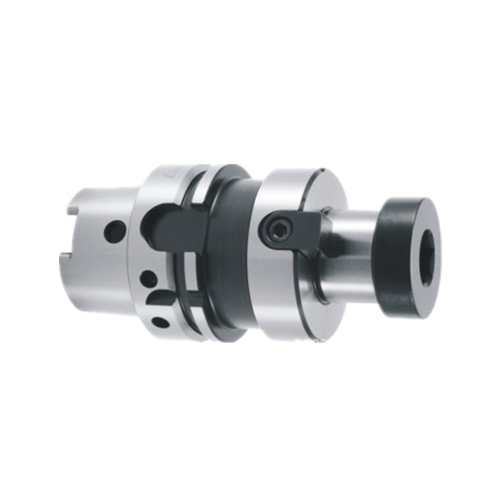

HSK FMB Face Mill Holder, High Precision, G6.3/G2.5 Balance hsk 63 tool holder
HSK Spindle FMB Face Mill Holder , used in the clamping of the cutter with the radial drive groove, such as the face milling cutter, the vertical disc cutter, the set type end mill, high speed and high precision machining. Mechanical spindle and cutting tools and other accessories. High Precision HSK shank Tool Holder ,balanced G6.3 or G2.5 For choose.HSK Tool Holders for mechanical spindle and cutting tool and other accessory tool connection. Is a simple, popular spindle shank connection standard, mainly HSK30 HSK40 HSK50... Etc.. Mold industry, and high-speed engraving machine, used more.
Hsk 63 Tool Holder SpecifiCATEEions
1, Hsk Face Milling Cutter Material: 40Cr, 20CrMnTi
2. Type: FMA, FMB
3, Hsk Face Milling Holder Model: FMA25.4, FMA31.75, FMA38.1, FMA50.8
FMB22, FMB27, FMB32, FMB40,
4, Accuracy: 0.005mm
5, Hardness: 52-58HRC
6, Hsk Tool Holders Usage: For holding like shell mill cutters
7, Standard: MAS403BT, DIN69871, CATEE ANSI B5.50, DIN2080,
8, Surface; heat treament, sand blasting
HSK FMB Face Mill Holder is a tool holder used in machining operations. It is specifically designed to hold face mills, which are cutting tools used for milling flat surfaces on a workpiece.
The HSK (Hollow Taper Shank) is a type of tool holder that provides high precision and rigidity. It is commonly used in CNC machining centers and is known for its excellent tool clamping and runout accuracy.
The FMB (Face Milling Arbor) is a type of tool holder that is specifically designed for face milling operations. It typically has a cylindrical shank with a flat surface for mounting the face mill.
The HSK FMB Face Mill Holder combines the benefits of the HSK tool holder system with the specific requirements of face milling operations. It provides a secure and precise connection between the face mill and the machine spindle, ensuring accurate and efficient machining.
Overall, the HSK FMB Face Mill Holder is a reliable tool holder for face milling operations, offering high precision, rigidity, and performance.

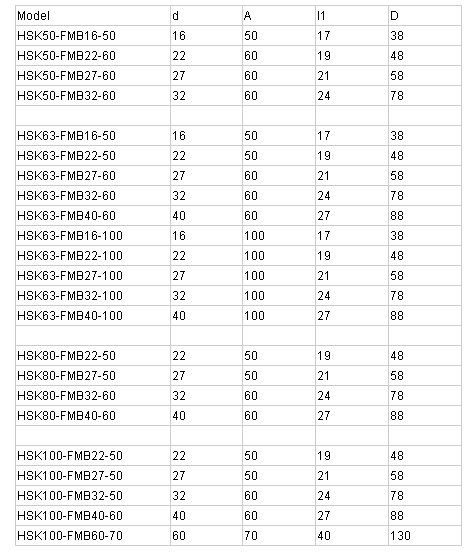

| Model | d | A | L1 | D |
| HSK50-FMB16-50 | 16 | 50 | 17 | 38 |
| HSK50-FMB22-60 | 22 | 60 | 19 | 48 |
| HSK50-FMB27-60 | 27 | 60 | 21 | 58 |
| HSK50-FMB32-60 | 32 | 60 | 24 | 78 |
| HSK63-FMB16-50 | 16 | 50 | 17 | 38 |
| HSK63-FMB22-50 | 22 | 50 | 19 | 48 |
| HSK63-FMB27-60 | 27 | 60 | 21 | 58 |
| HSK63-FMB32-60 | 32 | 60 | 24 | 78 |
| HSK63-FMB40-60 | 40 | 60 | 27 | 88 |
| HSK63-FMB16-100 | 16 | 100 | 17 | 38 |
| HSK63-FMB22-100 | 22 | 100 | 19 | 48 |
| HSK63-FMB27-100 | 27 | 100 | 21 | 58 |
| HSK63-FMB32-100 | 32 | 100 | 24 | 78 |
| HSK63-FMB40-100 | 40 | 100 | 27 | 88 |
| HSK80-FMB22-50 | 22 | 50 | 19 | 48 |
| HSK80-FMB27-50 | 27 | 50 | 21 | 58 |
| HSK80-FMB32-60 | 32 | 60 | 24 | 78 |
| HSK80-FMB40-60 | 40 | 60 | 27 | 88 |
| HSK100-FMB22-50 | 22 | 50 | 19 | 48 |
| HSK100-FMB27-50 | 27 | 50 | 21 | 58 |
| HSK100-FMB32-50 | 32 | 50 | 24 | 78 |
| HSK100-FMB40-60 | 40 | 60 | 27 | 88 |
| HSK100-FMB60-70 | 60 | 70 | 40 | 130 |
